Simulation Lab

STAFF:

  1. Mr Binu Kumar (Lab Technician)

List of Machinery:

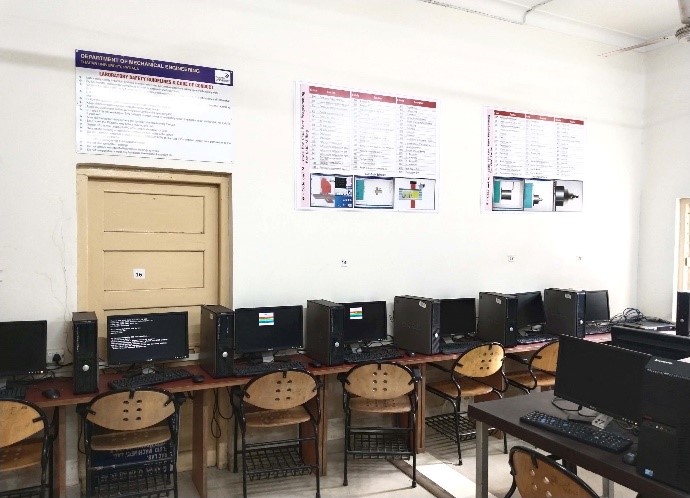

No. of Work Station

25 no’s

Software Name / Make

CNC Train Simulation System/ MTAB

Title of the related experiment:

1.    To create and simulate a program in CNC train simulation system software for turning of cylindrical billet.

2.    To create and simulate a program in CNC train simulation system software for machining of flat rectangular billet.

A brief explanation of the usage of the said equipment

CNC Train Simulation System software is an easy-to-use programming and simulation software for both 2-axis CNC Lathe and 3- axis CNC Mill, covering set-up and MDI programming. The software has Fanuc-based control programming. In this software, the user can enter the part program through the Windows editor, On-Screen Control, MDI hardware or generate CAM code using the built-in CAM module. With this software, students should be able to:

·      To learn the G and M codes.

·      Use FANUC controls operation, part programming and more.

·      To familiarize with the industrial control panel of CNC machines.

·      To learn the skills for tool selection, offsets, datum control techniques etc.
